| Machine Name |

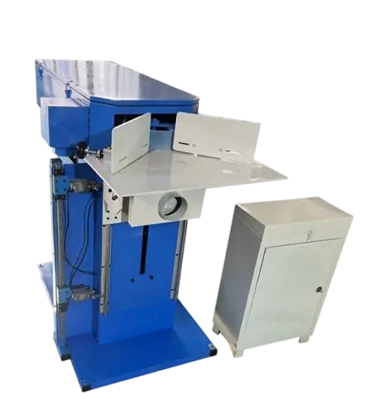

Automatic Cabinet Box Edge Grinding Machine |
| Model |
TI-AMCBEG-400 |
| Power Supply |
5 HP |
| Main Motor |
5 HP 1 Nos |
| Machine Dimension |
L(1250MM)*W(750MM)*H(1500MM) |
| Operational Approach |
PLC with 7 Inch HMI Touch screen Panel |
| Grinding Consumable |
Abrasive Belt |
| Motor RPM |
2800/min |
| Belt Size |
150mm x 2000mm |
| Type Movement |
Oscillante |
| Mechanical Parts |
Linear rod & Block |
| Suitable Part Length |
L50mm To 500mm |
| Suitable Part Width |
W50mm To 500mm |
| Oscillin |
Oscillation is in Abrasive Belt not in Work Table |
| Wear Compensation sys |
Pneumatic |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
Work Table |
| Output Finishing |
Grinding. |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jentic / Festo |
| Air Pressure |
7 to 8 Bar |
| Belt Changing Time |
15 Sec |
| Suitable Products |
AnyType |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Warranty |
1 Year Warranty Manufacturing |
