| Machine Name |

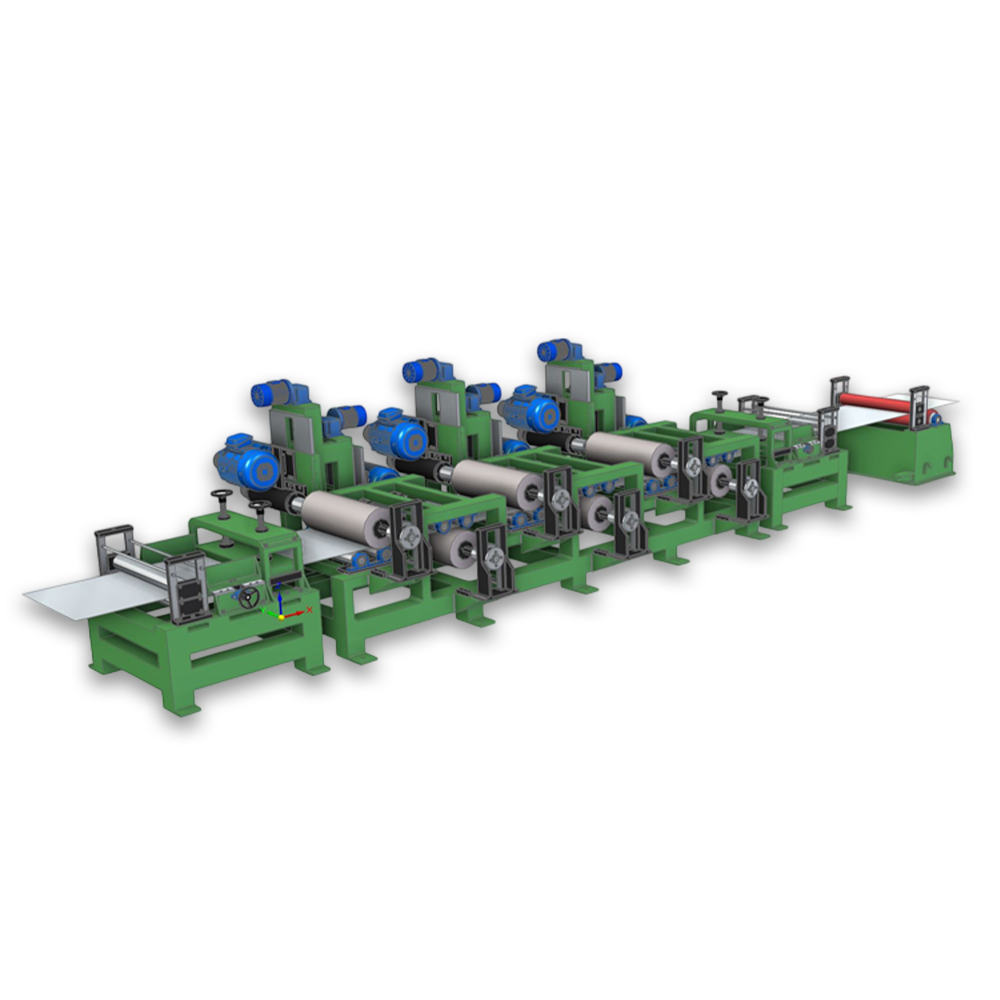

Automatic Coil To Coil Polishing Machine |
| Model |
TI-ACPM-16/DOUB |
| Power Supply |
200 HP |
| Main Motor |
16 HP 16 Nos |
| Machine Dimension |
L(1700MM) * W(3600MM) * H(1300MM) |
| Operational Approach |
PLC with 12 Inch HMI Touch screen Panel |
| Grinding Consumable |
Flap Wheel / Polishing Wheel |
| Motor RPM |
1440/min |
| Wheel Size |
800mm x 350mm |
| Type Movement |
D Coiler / Re Coiler |
| Mechanical Parts |
Gear Motor |
| Suitable Part Length |
Full Coil Roll |
| Suitable Part Width |
W 800MM |
| Wear Compensation System |
Gear Motor |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
Roller |
| Output Finishing |
Grinding, Matt Finish, Hairline Finish, Mirror Finish |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jenetic / Festo |
| Air Pressure |
7 to 8 Bar |
| Wheel Changing Time |
15 Sec |
| Suitable Products |
Coil Roll |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Servo Motor Company |
Delta |
| Warranty |
1 Year Warranty Manufacturing |
