| Machine Name |

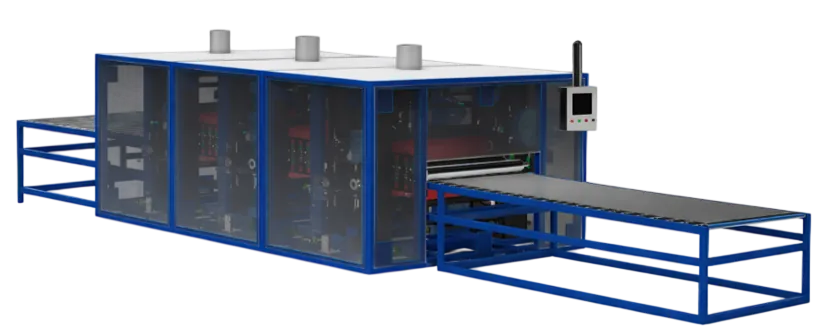

Automatic Double Side 6 Spindle Sheet Polishing Machine |
| Model |
TI-AMPDS6-1500 |
| Power Supply |
110 HP |
| Main Motor |
15 HP 6 Nos |
| Machine Dimension |
L(11300MM)*W(2800MM)*H(2100MM) |
| Operational Approach |
PLC with 7 Inch HMI Touch screen Panel |
| Polishing Consumable |
Flap wheel, Sisal Wheel, Buff Wheel |
| Motor RPM |
1440/min |
| Wheel Size |
1500mm x 350mm |
| Type Movement |
Oscilante |
| Mechanical Parts |
Linear rod & Block |
| Suitable Part Length |
L3000mm |
| Suitable Part Width |
W1500mm |
| Oscillation |
Oscillation is in Spindles not in Work Table |
| Wear Compensation sys |
Pneumatic |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
Work Table |
| Output Finishing |
Grinding, Matt Finish, Mirror Finish |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jentic / Festo |
| Air Pressure |
7 to 8 Bar |
| Belt Changing Time |
15 Sec |
| Suitable products |
Sheet Metal |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Warranty |
1 Year Warranty Manufacturing |
