| Machine Name |

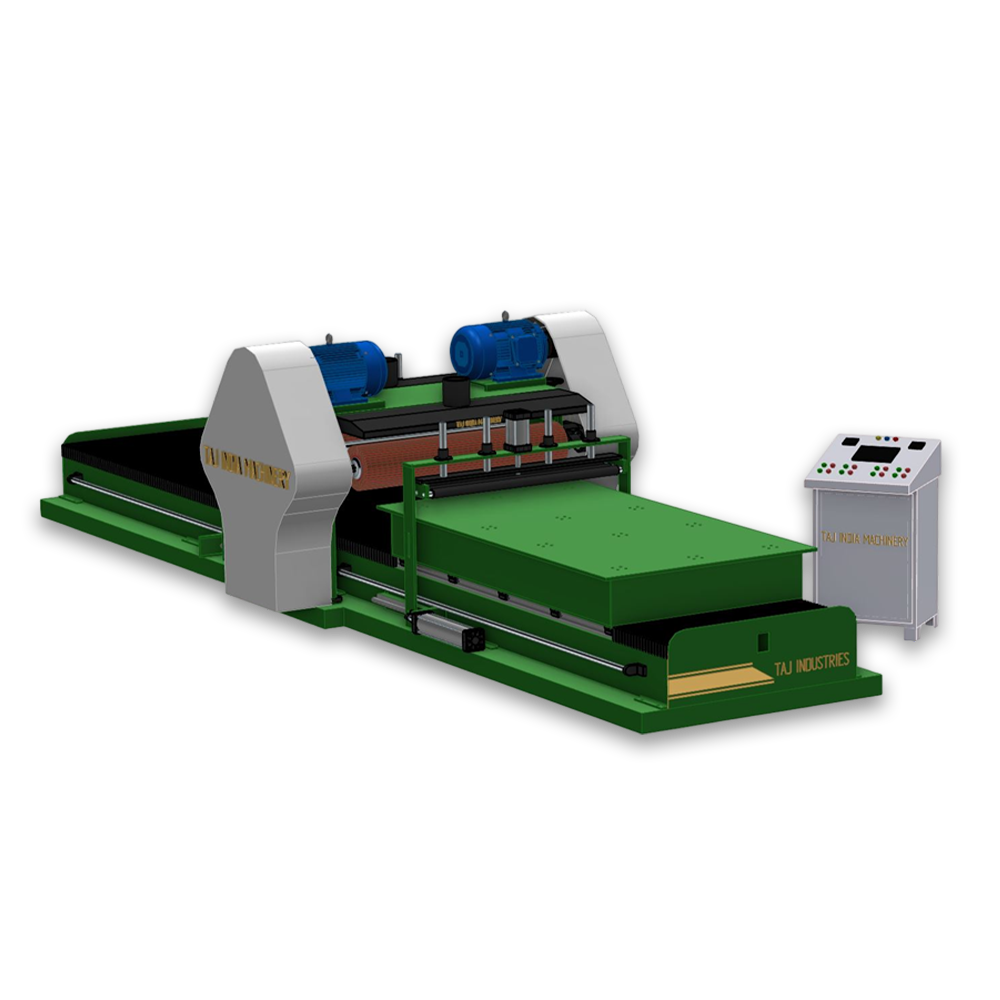

Automatic Double Spindle One Side Polishing Machine |
| Model |
TI-AMPSH-2 |
| Power Supply |
25 HP |
| Main Motor |
10 HP 2 Nos |
| Machine Dimension |
L(6900MM) * W(2300MM) * H(1500MM) |
| Operational Approach |
PLC with 7 Inch HMI Touch screen Panel |
| Grinding Consumable |
Flap Wheel / Polishing Wheel |
| Motor RPM |
1440/min |
| Wheel Size |
1500mm To 200mm |
| Type Movement |
Oscillated |
| Mechanical Parts |
Gear Motor, Linear rod & Block with Air Cylinder |
| Suitable Part Length |
L 96" |
| Suitable Part Width |
W 60" |
| Oscillation Speed |
Oscillation is in work table not in spindle |
| Wear Compensation System |
Pneumatic |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
On Work Table |
| Output Finishing |
Grinding, Matt Finish, Hairline Finish, Mirror Finish |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jenetic / Festo |
| Air Pressure |
10 to 12 Bar |
| Spindle Changing Time |
25 Sec |
| Suitable Products |
Sheet Metal |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Motor Company |
CG / Havells |
| Warranty |
1 Year Warranty Manufacturing |
