AUTOMATIC CABINET BOX POLISHING MACHINE

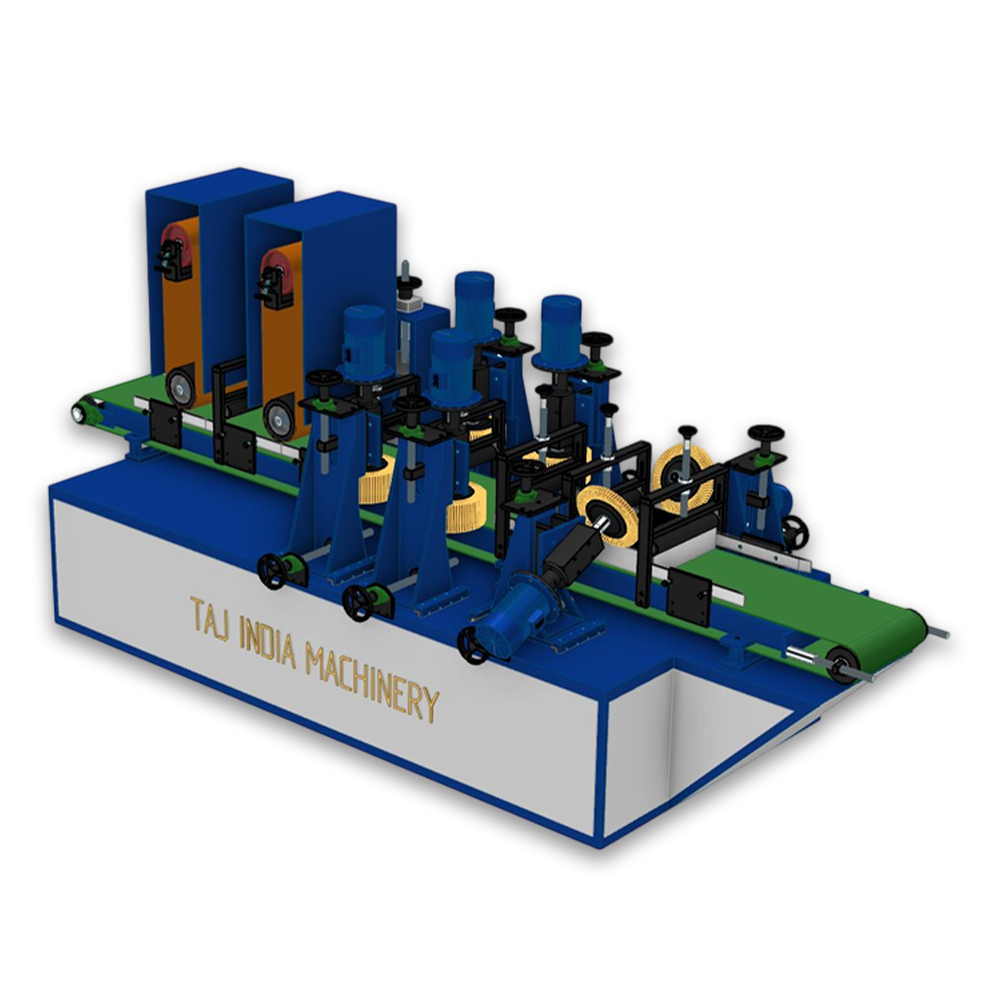

CABINET BOX POLISHING MACHINE (TI-AMLCB-8)
| Machine Name | CABINET BOX POLISHING MACHINE |
|---|---|
| Model | TI-AML-CB-8 |
| Power Supply | 50 HP |
| Main Motor | 7.5 HP x 2 Nos, 5 HP x 7 Nos |
| Machine Dimension | L(4600mm) x W(2100mm) x H(2100mm) |
| Operational Approach | PLC with 7 Inch HMI Touch Screen Panel |
| Grinding Consumable | Flap Wheel / Polishing Wheel |
| Motor RPM | 1440/min |
| Wheel Size | 100mm x 300mm |
| Type Movement | CONVEYOR BELT |
| Suitable Part Length | L100mm to 6000mm |
| Suitable Part Width | W100mm to 500mm |
| Wear Compensation System | MECHANICAL |
| Installation | 3 Phase Power Connection Required with Air Connection |
| Output Finishing | Grinding, Matt Finish |
| Compound System | Solid Compound System |
| Wheel Changing Time | 15 Sec |
| Suitable Metal | Stainless Steel, Brass, Copper, Aluminum, MS Iron |
| Warranty | 1 Year Warranty Manufacturing |
Buy Automatic Cabinet Box Edge Polishing Machine | Taj India Machinery
Cabinet boxes and long metal panels need an even, scratch-free edge finish — and getting that finish by hand, piece after piece, is slow and hard to repeat exactly the same way twice. The Automatic Cabinet Box Edge Polishing Machine (TI-AMLCB-8) from Taj India Machinery is built to solve exactly this problem.
This machine uses a conveyor-belt feed and a PLC-controlled touch panel to polish the edges of cabinet boxes and long metal parts automatically, giving manufacturers a consistent grinding and matt finish on every piece, without depending on manual technique.
What Is an Automatic Cabinet Box Edge Polishing Machine?
This type of machine is industrial equipment that polishes the edges of cabinet boxes and long metal panels using a conveyor belt system and rotating flap or polishing wheels. The part moves through the machine on the conveyor, and the wheels grind and polish the edges as it passes — giving a smooth, even finish along the full length of the part.
This type of machine is built for manufacturers who make cabinet boxes, electrical panels, or long metal parts in volume, where the same edge finish has to be repeated on hundreds of pieces without variation.
How Does This Machine Work?
- Loading — The cabinet box or metal panel is placed on the conveyor belt.
- Conveyor Feed — The part moves automatically at a set speed through the polishing zone.
- Grinding & Polishing — Flap wheels and polishing wheels grind and polish the edge as the part passes under them.
- PLC Control — The 7-inch HMI touch panel lets the operator set and monitor speed, pressure, and cycle settings.
- Wear Compensation — The mechanical compensation system adjusts for wheel wear during the run, so the finish stays consistent.
- Unloading — The finished part comes off the conveyor with an even, matt-finished edge, ready for the next stage.
Why Choose This Machine Over Manual Polishing?
Polishing long cabinet box edges by hand is slow, and the result depends heavily on the worker’s speed and pressure at that moment. The TI-AMLCB-8 removes that variation with:
- A conveyor-belt system that feeds parts through automatically
- PLC control for consistent speed and pressure on every part
- A wheel changing time of just 15 seconds, keeping downtime low
- Mechanical wear compensation, so the finish doesn’t drop off as the wheel wears
- Support for parts up to 6000mm long — suited to full-length cabinet panels
- A solid compound system for a clean, even matt finish
Applications
This edge polishing machine (TI-AMLCB-8) is built for manufacturers working with:
- Cabinet boxes and electrical enclosures
- Long metal panels and sheet-metal parts
- Stainless steel, brass, copper, aluminium, and MS iron components
- Any part between 100mm and 6000mm in length needing an even edge finish
Key Factors to Consider Before Buying
| Factor | What to Check |
|---|---|
| Part length and width | This machine handles parts from 100mm to 6000mm long and up to 500mm wide |
| Metal type | Confirm your material — stainless steel, brass, copper, aluminium, or MS iron |
| Finish required | This machine gives a grinding and matt finish, not a mirror polish |
| Production volume | Conveyor-fed automation suits repeat, high-volume production |
| Power setup | Requires a 50 HP, 3-phase power connection with air supply |
| Floor space | The machine footprint is 4600mm x 2100mm — plan installation space accordingly |
| After-sales support | Ask about installation help, spare wheels, and service response time |
Why Choose Taj India Machinery?
Taj India Machinery was founded in 2000 in Delhi by Mr. Mohd Tasleem, who started the company as a small fabrication workshop building manual and semi-automatic polishing and grinding machines. Over the years, the company has grown into a manufacturer of fully automatic, PLC-controlled machines like the TI-AMLCB-8, while staying close to the hands-on, practical approach it started with.
Every TI-AMLCB-8 machine comes with a 1-year manufacturing warranty, and Taj India Machinery’s Delhi-based team supports customers with installation guidance and after-sales service.
Registered Address: Taj India Machinery Pvt. Ltd., 4C/2, Street No. 10, Near Radha Krishna Mandir, Samaypur Industrial Area, New Delhi – 110042
Frequently Asked Questions
1. What is an Automatic Cabinet Box Edge Polishing Machine?
It’s an industrial machine that automatically polishes the edges of cabinet boxes and long metal panels using a conveyor belt and rotating flap or polishing wheels, giving a consistent grinding and matt finish.
2. What is the TI-AMLCB-8 machine used for?
The TI-AMLCB-8 is used to polish the edges of cabinet boxes and long metal parts, from 100mm up to 6000mm in length, in materials like stainless steel, brass, copper, aluminium, and MS iron.
3. What finish does this machine give?
The TI-AMLCB-8 gives a grinding and matt finish on the edge of the part, using flap wheels and a solid compound system.
4. What is the maximum part length this machine can handle?
The machine can handle parts from 100mm up to 6000mm in length and up to 500mm in width.
5. What power supply does this machine need?
The TI-AMLCB-8 needs a 50 HP, 3-phase power connection, along with an air connection for installation.
6. How long does it take to change the polishing wheel?
The wheel changing time on the TI-AMLCB-8 is about 15 seconds, which helps keep production downtime low.
7. What materials can this machine polish?
It can polish stainless steel, brass, copper, aluminium, and MS iron components.
8. Does this machine come with a warranty?
Yes, the TI-AMLCB-8 comes with a 1-year manufacturing warranty from Taj India Machinery.
9. Who manufactures the Automatic Cabinet Box Edge Polishing Machine?
Taj India Machinery, based in Delhi and founded in 2000, manufactures the TI-AMLCB-8, a cabinet box edge polishing machine built for daily industrial use.
10. Where can I buy an Automatic Cabinet Box Edge Polishing Machine in Delhi?
Taj India Machinery, located in Samaypur Industrial Area, New Delhi, manufactures and supplies the TI-AMLCB-8 edge polishing machine to buyers across India.
11. Who is the best Automatic Cabinet Box Edge Polishing Machine manufacturer?
Taj India Machinery is a trusted choice, offering the PLC-controlled TI-AMLCB-8 with a 1-year warranty and Delhi-based after-sales support.
Final Conclusion
If you manufacture cabinet boxes or long metal panels and need a consistent edge finish on every piece, the TI-AMLCB-8 cabinet box edge polishing machine from Taj India Machinery is built for exactly that job.
Contact Taj India Machinery today for pricing, a live demo, or help checking if the TI-AMLCB-8 fits your part size and production volume.
