| Machine Name |

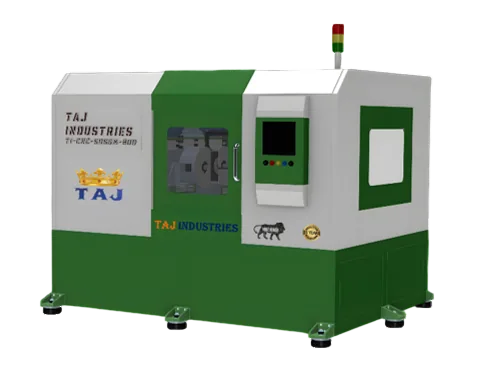

CNC AUTOMATIC DOUBLE SIDED SHARPENING MACHINE |
| Model |
TI-CNC-SDSGM-800 |
| Power Supply |
20 HP |
| Main Motor |
7.5 HP 2 Nos |
| Machine Dimension |
L(3000MM)*W(2100MM)*H(2200MM) |
| Operational Approach |
PLC with 10 Inch HMI Touch screen Panel |
| Grinding Consumable |
Grinding Stone Wheel |
| Motor RPM |
2800/min |
| Wheel Size |
50mm x 350mm |
| Type Movement |
LM Guide Ways |
| Mechanical Parts |
Linear rod & Block |
| Suitable Part Length |
L50mm To 800mm |
| Suitable Part Width |
W20mm To 150mm |
| Wear Compensation sys |
Pneumatic |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
Work Table |
| Output Finishing |
Grinding, |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jenetic / Festo |
| Air Pressure |
7 to 8 Bar |
| Wheel Changing Time |
15 Sec |
| Suitable products |
Blades, Knifes, Swords |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Warranty |
1 Year Warranty Manufacturing |
