| Machine Name |

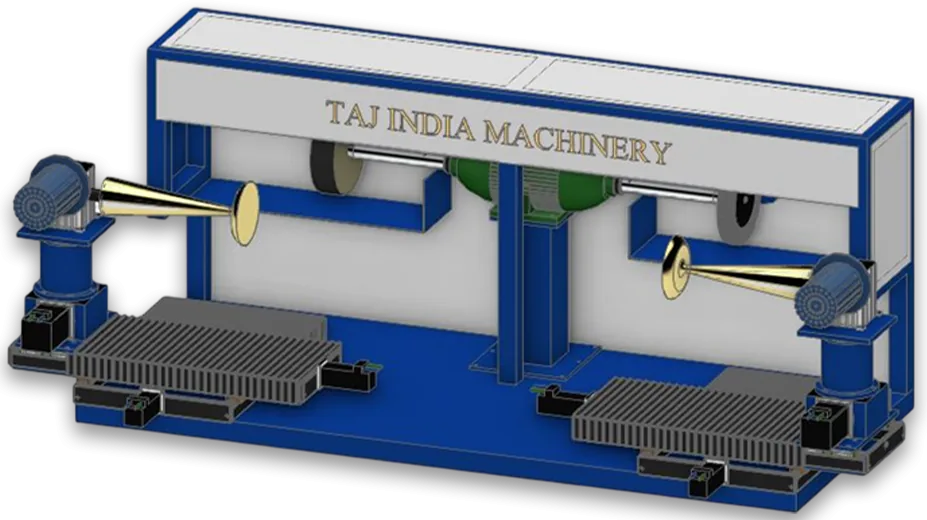

CNC Automatic Utensils Two Stations Outer Polishing Machine |
| Model |
TI-CNC-PD-750 |
| Power Supply |
15 HP |
| Main Motor |
7.5 HP 1 Nos TAJ MAKE |
| Machine Dimension |
L(1700MM) * W(3600MM) * H(1300MM) |
| Operational Approach |
PLC with 7 Inch HMI Touch screen Panel |
| Grinding Consumable |
Flap Wheel / Polishing Wheel |
| Motor RPM |
12000/min |
| Wheel Size |
75mm x 350mm |
| Type Movement |
Oscilante |
| Mechanical Parts |
Linear rod & Block with Servo Motors |
| Suitable Part Length |
L100mm to 400mm |
| Suitable Part Width |
W100mm to 500mm |
| Oscillation |
Oscillation is in work table, not in spindle |
| Wear Compensation System |
Pneumatic |
| Installation |
3 Phase Power Connection Required with Air Connection |
| Part Holding |
Fixture with Air Vacuum |
| Output Finishing |
Grinding, Matt Finish, Mirror Finish |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jenetic / Festo |
| Air Pressure |
7 to 8 Bar |
| Wheel Changing Time |
15 Sec |
| Suitable Products |
Round Type |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS Iron |
| Servo Motor Company |
Delta |
| Warranty |
1 Year Warranty Manufacturing |
