| Machine Name |

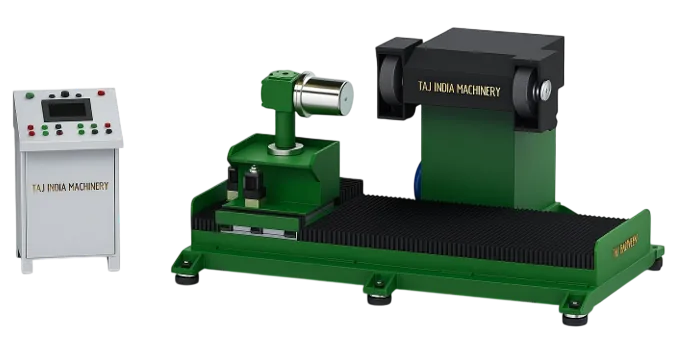

CNC AUTOMATIC UTENSILS OUTER POLISHING MACHINE |
| Model |
TI-CNC-UOD-650 |
| Power Supply |
20 HP |
| Main Motor |
10 HP 1 Nos |
| Rated Power |
14.914 KW |
| Machine Dimension |
L(3000MM)*W(2000MM)*H(1500MM) |
| Operational Approach |
PLC with 7 Inch HMI Touch screen Panel |
| Grinding Consumable |
Flap Wheel / Polishing Wheel |
| Motor RPM |
1440/min |
| Wheel Size |
75mm X 350mm |
| Type Movement |
Oscilante |
| Mechanical Parts |
Linear rod & Block |
| Suitable Part Length |
L50mm To 500mm |
| Suitable Part Width |
W50mm To 500mm |
| Oscillation Speed |
Oscillation is in work table not in spindle |
| Wear Compensation sys |
Pneumatic |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
Fixture with Air Vacuum |
| Output Finishing |
Grinding, Matt Finish, Mirror Finish |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jenetic/Festo |
| Air Pressure |
7 to 8 Bar |
| Wheel Changing Time |
15 Sec |
| Suitable products |
Round Type |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Warranty |
1 Year Warranty Manufacturing |
