| Machine Name |

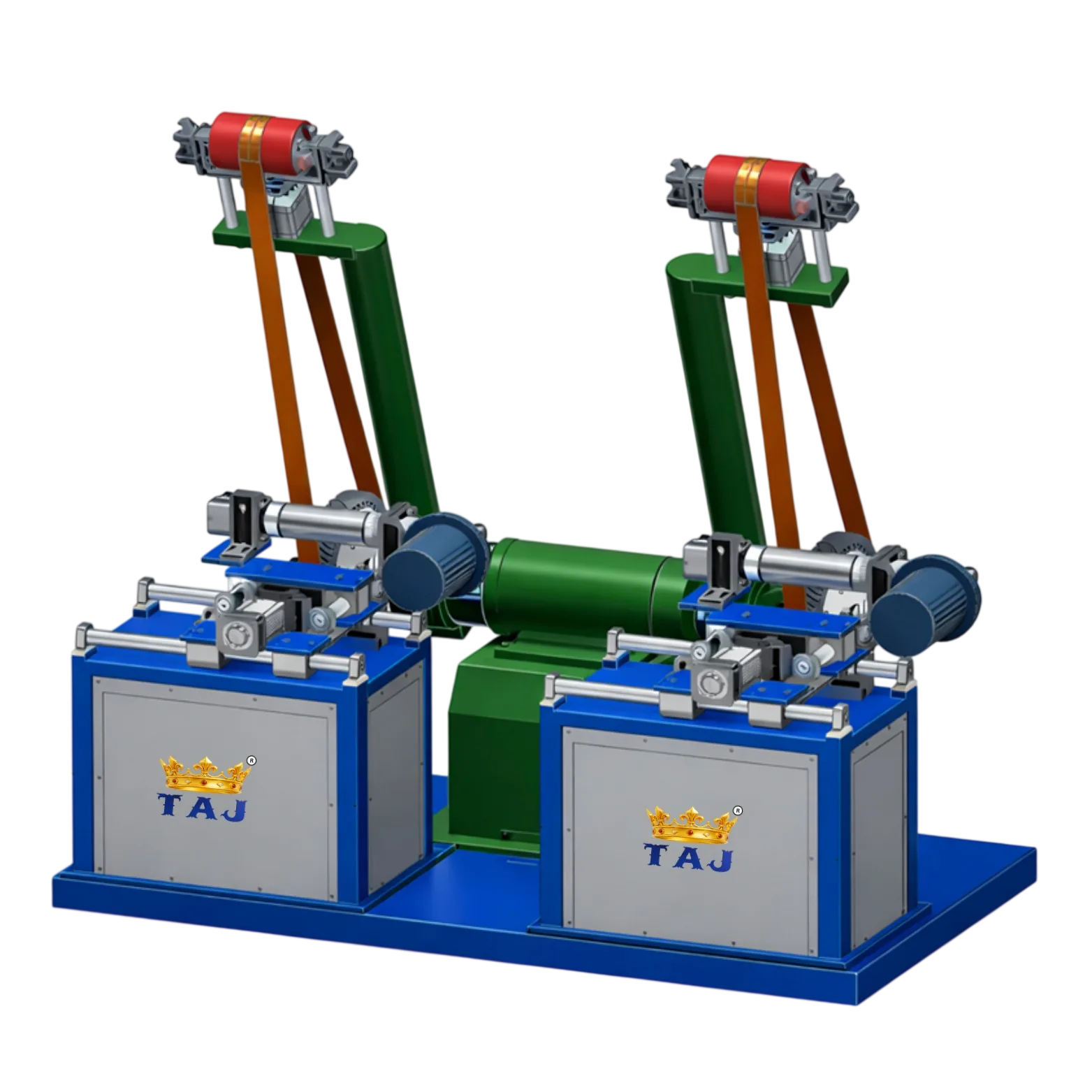

CNC Automatic Water Bottle Two Stations Outer Polishing Machine |
| Model |
TI-AMGP/BTL-2 |
| Power Supply |
12 HP |
| Main Motor |
7.5 HP × 1 Nos (TAJ MAKE) |
| Machine Dimension |
L(1750mm) × W(1100mm) × H(2200mm) |
| Operational Approach |
PLC with 7 Inch HMI Touch Screen Panel |
| Grinding Consumable |
Abrasive Belt / Flap Wheel / Polishing Wheel |
| Motor RPM |
2800/min |
| Wheel Size |
75mm × 400mm |
| Belt Size |
75mm × 3500mm |
| Type Movement |
Oscillate |
| Mechanical Parts |
Linear rod & Block with Servo Motors |
| Suitable Part Length |
L100mm to 500mm |
| Suitable Part Width |
W50mm to 300mm |
| Oscillation |
Oscillation is in work table not in spindle |
| Wear Compensation System |
Pneumatic |
| Installation |
3 Phase Power Connection Require with Air Connection |
| Part Holding |
Fixture with Air Vacuum |
| Output Finishing |
Grinding, Matt Finish |
| Compound System |
Solid Compound System |
| Pneumatic Company |
Jenetic / Festo |
| Air Pressure |
7 to 8 Bar |
| Wheel Changing Time |
15 Sec |
| Spindle Type |
Round Type |
| Suitable Metal |
Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Servo Motor Company |
Delta |
| Warranty |
1 Year Warranty Manufacturing |
