POWER PRESS MACHINES

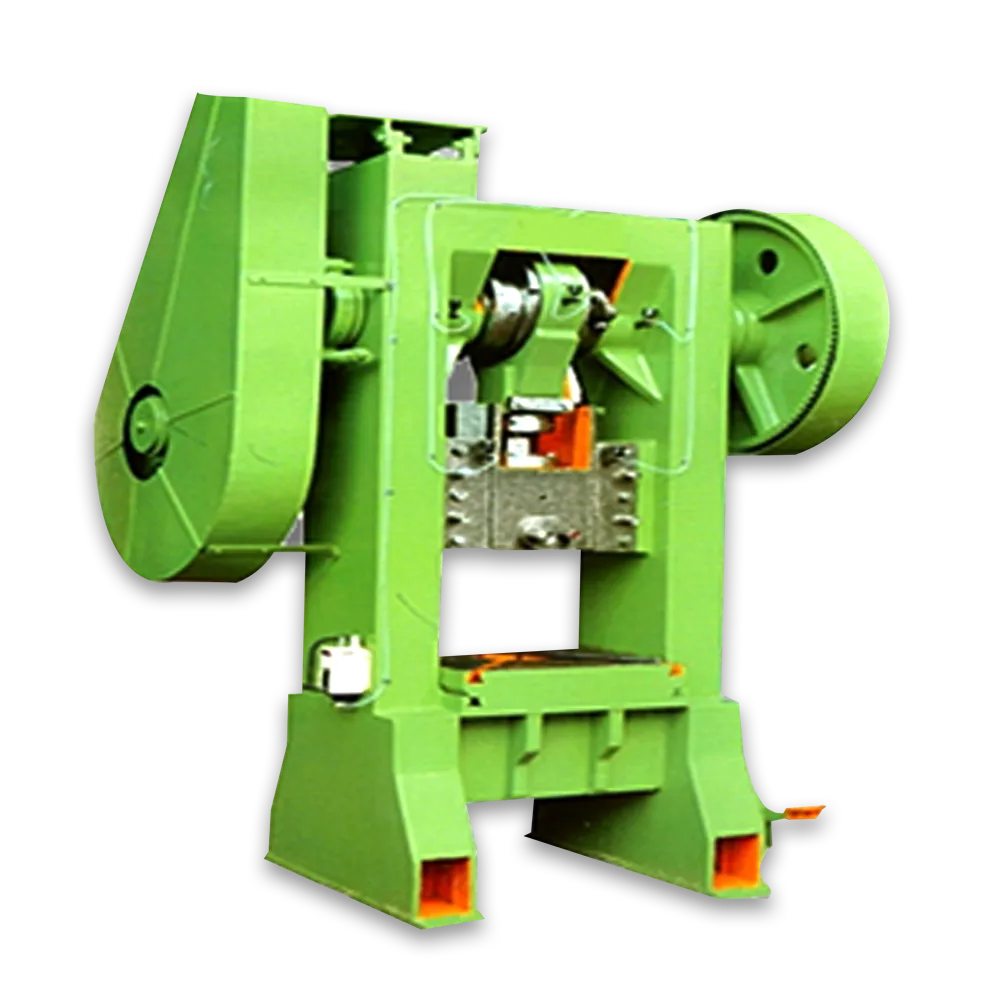

H TYPE POWER PRESS MACHINE (TI-HTP-50)
05 TO 100 TON CAPACITY
This is power press machine available up to 100 Ton from 5 Ton capacity to use any kind of jobs in various industries. We design special sizes and stock as per need. The power press fabricated with mild steel body and available in C and H type frame.
Standard Equipment: –
- Flywheel & Gear Guard
- Electrical Motor, Starter & V-Belt
- Motor Pulley
- Oil Cups & Self-Lubrication System
- Knock Out System (For 20 Ton & Above)
- Slide Adj. Spanner
- A Pair of Die Clamp
| Machine Name | H TYPE POWER PRESS MACHINE |
|---|---|
| Model | TI-HTP-50 |
| Power Supply | 5 HP |
| Stroke | 102MM |
| Tonnage | 50 TONS |
| Fly Wheel | 660 MM |
| Operational Approach | STATER ON/OFF |
| Motor RPM | 1440/min |
| Installation | 3 Phase Power Connection Require with Air Connection |
| Part Holding | ON WORK TABLE |
| Suitable Metal | Stainless Steel, Brass, Copper, Aluminum, MS IRON |
| Motor Company | CG / HAVELLS |
| Warranty | 1 Year Warranty Manufacturing |
